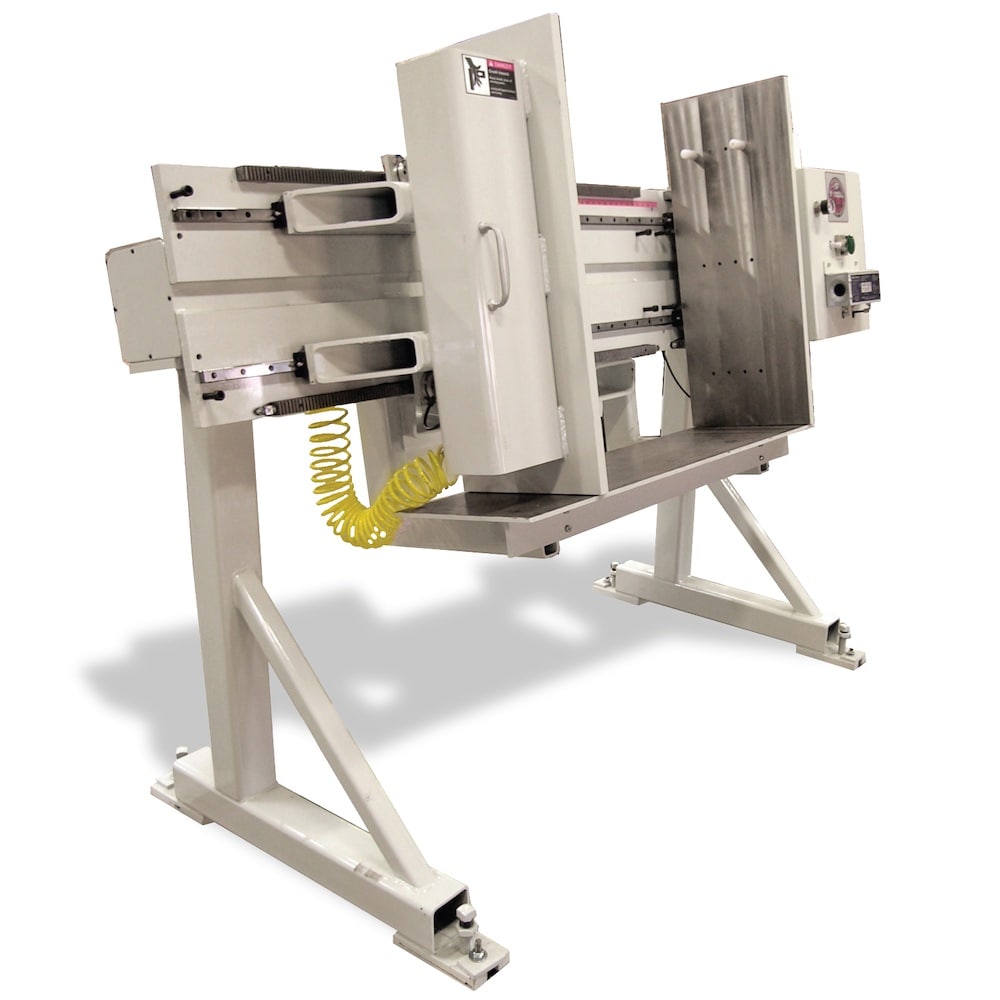

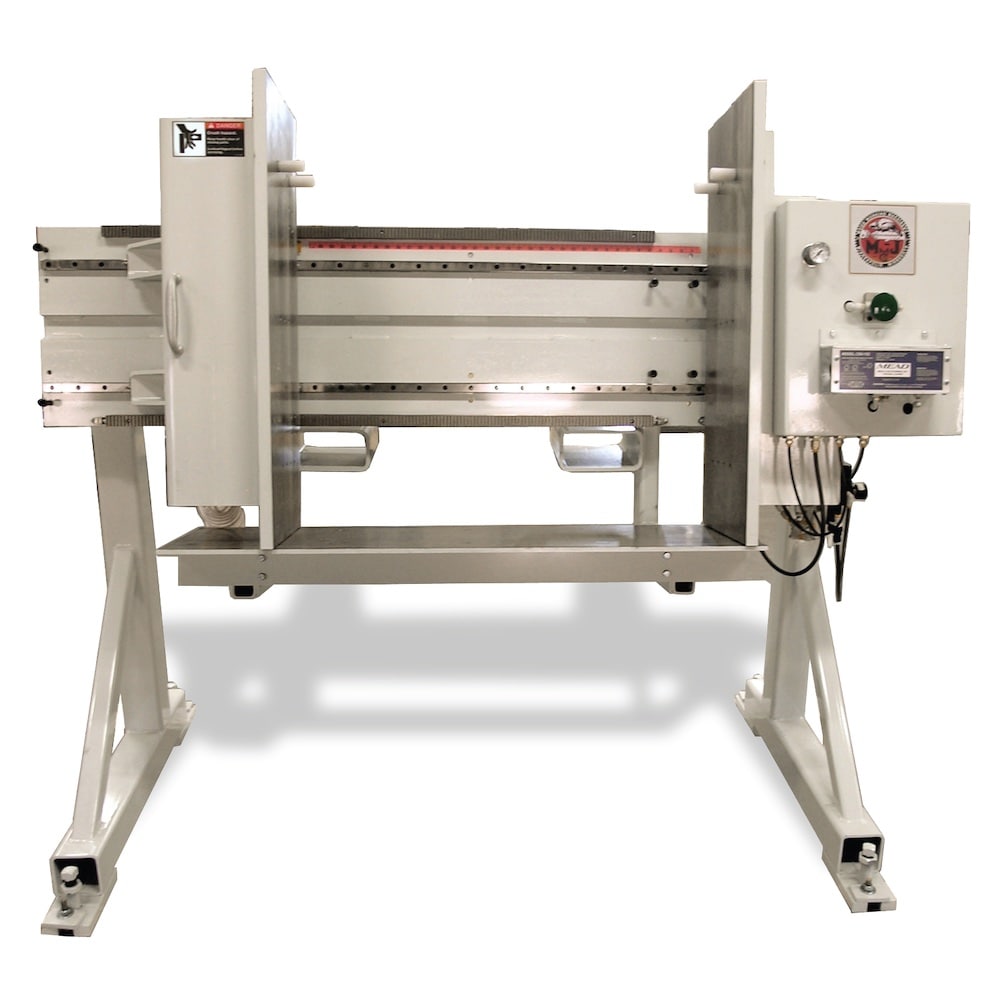

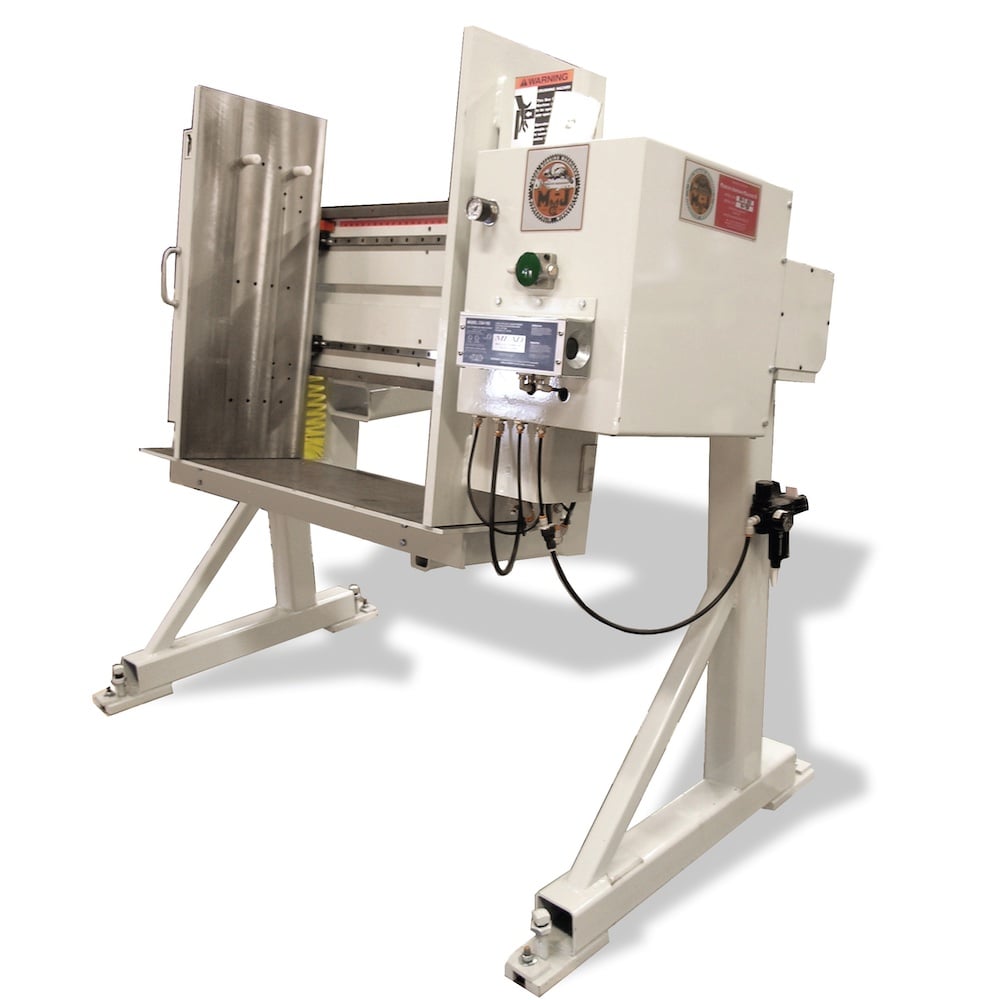

99-D Box Press

Specifications

Machine type	Pneumatic drawer box press / assembly clamp

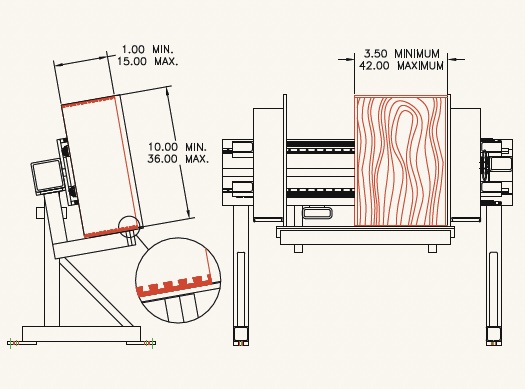

Min. clamping size	3.5″ W × 10″ L × 1″ D
Max. clamping size	42″ W × 36″ L × 15″ D
Max. clamping pressure	2,000 lbs (horizontal)
Compressed air required	80–100 PSI, 2 CFM
Power	Compressed air only — no electrical power required
Frame	Heavy-duty steel plate and tube; 10° fixed tilt for ergonomics
Clamp	Adjustable, on linear bearings, free-floating with automatic lock actuation
Actuation	Two-hand clamp actuation (safety); single-hand release
Loading	Full-width lower support shelf; open-top access; multi-position stock locating pins
Setup	No tools required
Joints	Dovetailed and doweled
Weight	1,710 lbs net (2,280 lbs gross shipping)
Country of origin	Made in the USA — Mereen-Johnson

How the 99-D Box Press Works

The 99-D turns loose, jointed box parts into a square, glued-up drawer box in one clamp cycle:

1. Load. Lay the four box sides — dovetailed or doweled and glued — onto the full-width support shelf, located by multi-position stock pins, with open-top access for easy loading. The 10-degree tilt keeps it ergonomic.
2. Position the clamp. The adjustable clamp rides on linear bearings, floating freely to any width — slide it to the box size and it locks automatically when actuated.
3. Clamp & square. Two-hand actuation (for safety) drives the air clamp to up to 2,000 lbs of horizontal pressure, seating the joints and squaring the box. Only compressed air is needed — no electrical power.
4. Release. A single-hand release frees the finished box, and you’re ready for the next one.

No tools, no electricity, and a quick, repeatable cycle — the 99-D is a drawer construction press that keeps assembly moving.

Applications

The 99-D assembles a wide variety of drawer and box goods:

• Drawer box assembly — square and press dovetailed or doweled drawer boxes.
• Dovetail & dowel joints — seat and clamp both joint types.
• Small to large boxes — from 3.5″ × 10″ × 1″ up to 42″ × 36″ × 15″.
• Cabinet & furniture drawers — production drawer boxes for cabinetry and furniture.
• On-machine assembly — build the box right on the press with locating pins and open-top access.

As a drawer assembly machine, the 99-D handles the assembly step that turns cut, jointed parts into a finished drawer box.

Industries Served

The 99-D supports drawer- and box-goods production across:

• Cabinetry — cabinet drawer boxes.
• Furniture — furniture drawers and small case goods.
• Closet & Storage — drawer boxes for closet and storage systems.
• Custom Millwork — custom drawer and box assembly.

Emerging applications: any drawer-box producer looking to assemble faster and more accurately with less labor.

Frequently Asked Questions

What is the 99-D Box Press?

The 99-D is Mereen-Johnson’s air-powered drawer box press — a machine that assembles and squares drawer boxes by clamping their dovetailed or doweled sides together under up to 2,000 lbs of pressure.

What is a drawer box press used for?

It’s the assembly step in drawer production: after the box parts are cut and jointed, the press clamps and squares the glued box so the joints seat true and the box comes out square.

Does it need electricity?

No. The 99-D runs on compressed air only — 80–100 PSI at about 2 CFM — with no electrical power required.

What size boxes can it assemble?

From a minimum of 3.5″ wide × 10″ long × 1″ deep up to a maximum of 42″ wide × 36″ long × 15″ deep.

Does it work with dovetail and dowel joints?

Yes. It assembles a wide variety of boxes that use dovetailed and doweled joints.

How does it keep the operator safe?

Clamping requires two-hand actuation, so both hands are clear of the clamp, with a convenient single-hand release.

How fast is setup?

Fast and tool-free — the clamp floats on linear bearings and locks automatically, so you slide it to the box size and actuate. No tools are required for operation or setup.

Is it made in the USA?

Yes. The 99-D is designed and built by Mereen-Johnson in the USA.
