Rip Navigator Scout

The Rip Navigator Scout is Mereen-Johnson’s largest rip optimization system — a complete, automated lumber ripping system that scans every board and rips it for maximum yield. As a full lumber optimization system with infeed chains, board dealers, and an optional board flipper, this automated rip system feeds, scans, solves, and rips up to ten 16-foot boards per minute, then reports on every load. It’s the rip optimizing machine for shops that want big-shop optimization in a compact, affordably priced package.

Our largest Rip Optimization system is the Scout; Equipped with infeed chains, board dealers, & an optional board flipper. This provides higher productivity & greater yield. It offers the ability to rip 10 – 16″ boards per minute & seamless integration with most Mereen-Johnson fixed blades and selective rip saws.

Rip-Nav-Scout-2024.pdf

Specifications

Big Shop Flexibility and Performance in a Compact, Affordably Priced Package

Up to ten – 16’ boards per minute production.
Scan lumber for width, length, and crook.
Ships fully assembled for fast and easy set-up.
Random width part capability on Select Rip Saws.
Integrates with most Mereen-Johnson fixed blade and selective rip saws.
Real time recording can turn off rips when production requirements are met.
Programmable cut bill will only rip strips that meet your length and cross cut requirements.

Optimize your business!

Getting good yield won’t mean much unless you’re producing the parts you need from your raw materials. Rip Navigator provides production flexibility with three modes of operation:

Yield mode to maximize fiber recovery
Value mode that allows you to quantify a dollar value for needed components
Manual mode for times when inventory is more important than yield recovery.

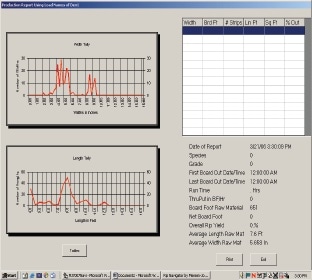

Rip Navigator is a powerful tool to track production performance. You control how reports are compiled choosing variables that are important to your business performance. Track performance by any combination of operator, vendor, species, shift, material thickness, grade, or individual load. Get the system that will streamline your production, enhance operator safety, reduce waste, improve feeding accuracy, minimize rework, and increase your profits!

New Rip Navigator 5.0 Technology

Our newly enhanced Rip Navigator 5.0 technology has three modes of operation to provide production flexibility: Yield Mode to maximize fiber recovery, Value Mode that allows you to quantify a dollar value for needed components, and Manual Mode for times when inventory is more important than yield recovery. With optional board flipping and other features, these systems integrate seamlessly with Mereen-Johnson rip saws and other material handling equipment. An optional NaviVision upgrade further enhances scanning with multiple color cameras.

Learn More

Automation & Robotics

Tailored Solutions for the Solid Wood Sector

Mereen-Johnson stands at the forefront of delivering cutting-edge automated handling solutions that will streamline your workforce and wood machinery assets. Our smart, automated handling solutions are meticulously crafted to enhance your machine throughput and efficacy while substantially trimming your labor expenses.

Our complete spectrum of services ranges from conceptualization and design of production lines to installation, personnel training and ongoing maintenance, and we cater to a wide array of client requirements, offering both standardized system solutions and fully personalized options to suit your specific needs.

Learn More

The Mereen-Johnson Difference

Made in the USA Quality

Vertically integrated manufacturing in the USA means we control every step of the process to deliver the performance and longevity that the industry has grown to expect from us.

Turnkey Custom Solutions

Listening to your specific needs, we will adapt a standard machine or develop a fully custom solution, including automation and robotics, and manufacture it in-house.

Excellence Under One Roof

Our state-of-the-art production space has room to build, test and prove large-scale design solutions. Design-build teams work together to make your custom concept a reality.

Parts, Service & Training

We will always support your machine. From training programs to replacement parts, schematics to software support, we’ve got you covered, remotely or onsite.

Learn More

How the Rip Navigator Scout Works

The Scout automates the whole ripping decision — feeding, scanning, optimizing, and ripping each board, then tracking the result:

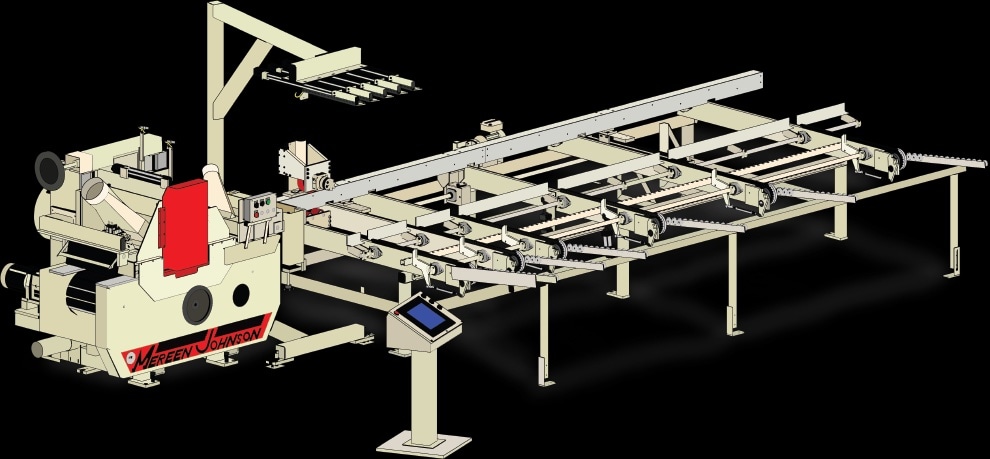

Feed. Infeed chains, accumulator arms, and an integrated board dealer meter boards into the system one at a time, so a single operator can keep it running. Power Tables with dual, pressure-compensated rolls feed each board accurately with minimal saw-bed wear.
Scan. As each board enters, the Scout scans it for width, length, and crook. (An optional NaviVision upgrade adds multiple color cameras for surface-defect detection.)

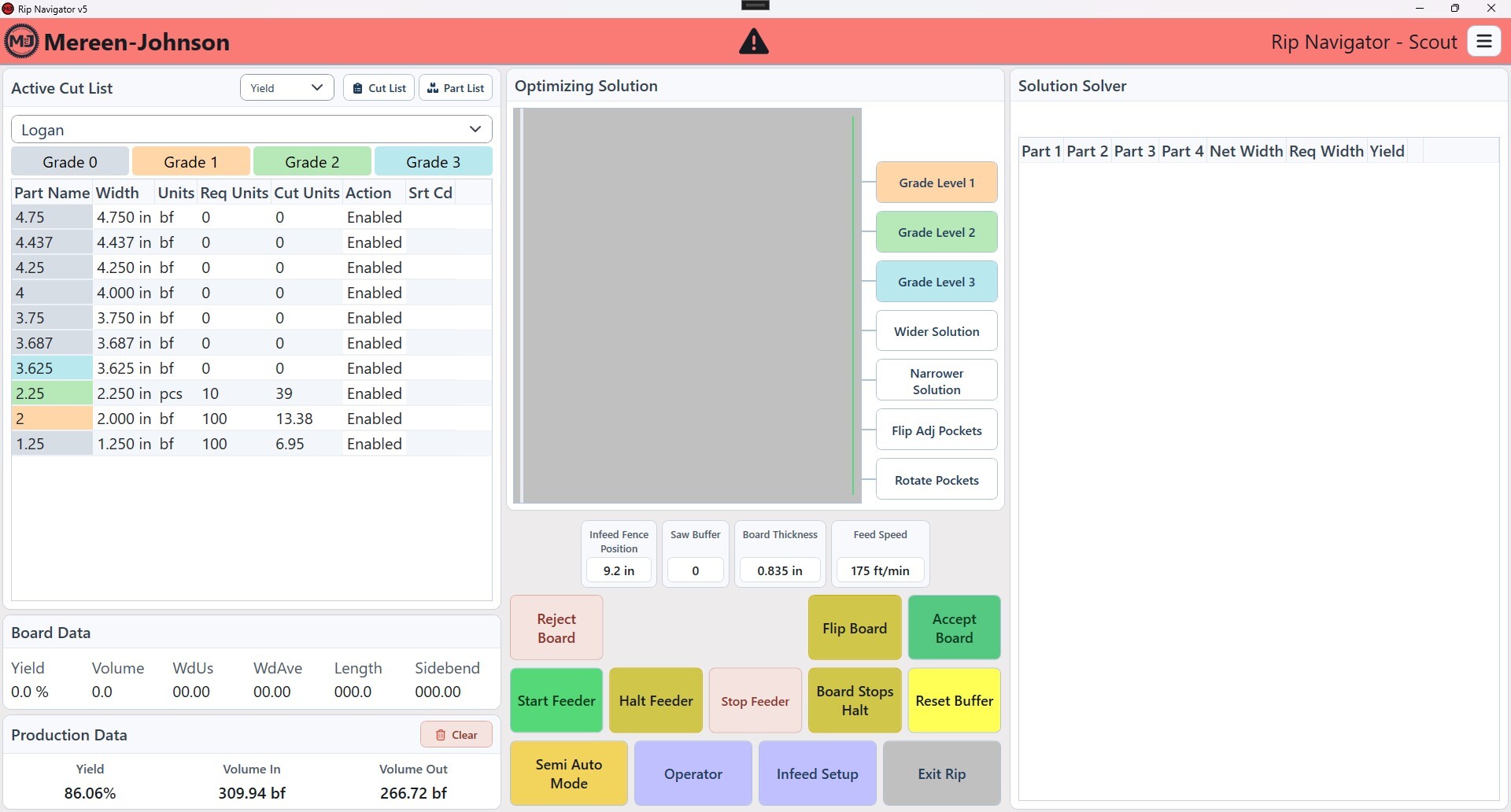

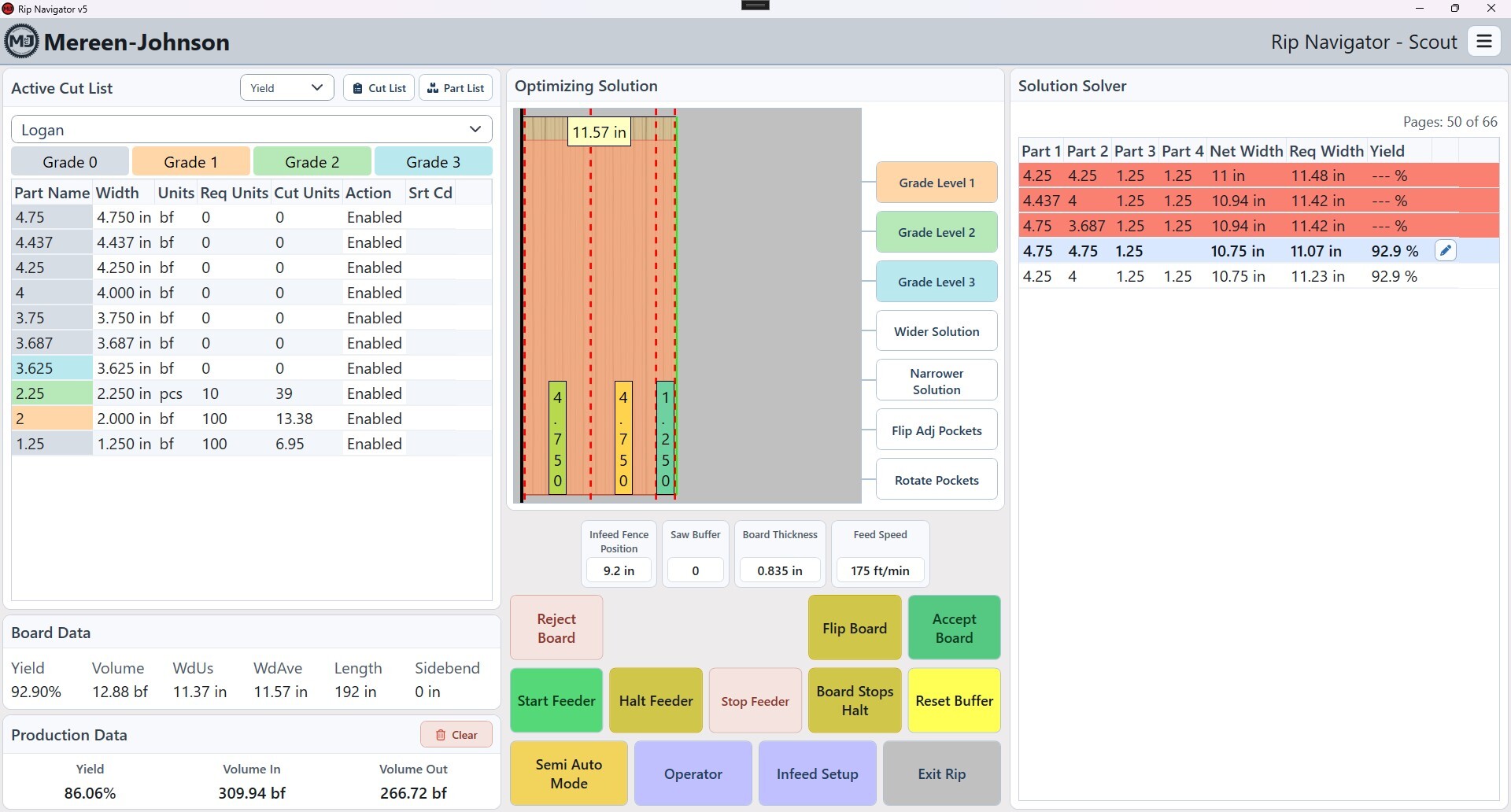

Optimize. Rip Navigator calculates the best rip solution for that board against your active cut bill, in one of three modes — Yield to maximize fiber recovery, Value to prioritize your highest-dollar parts, or Manual when inventory matters more than yield.

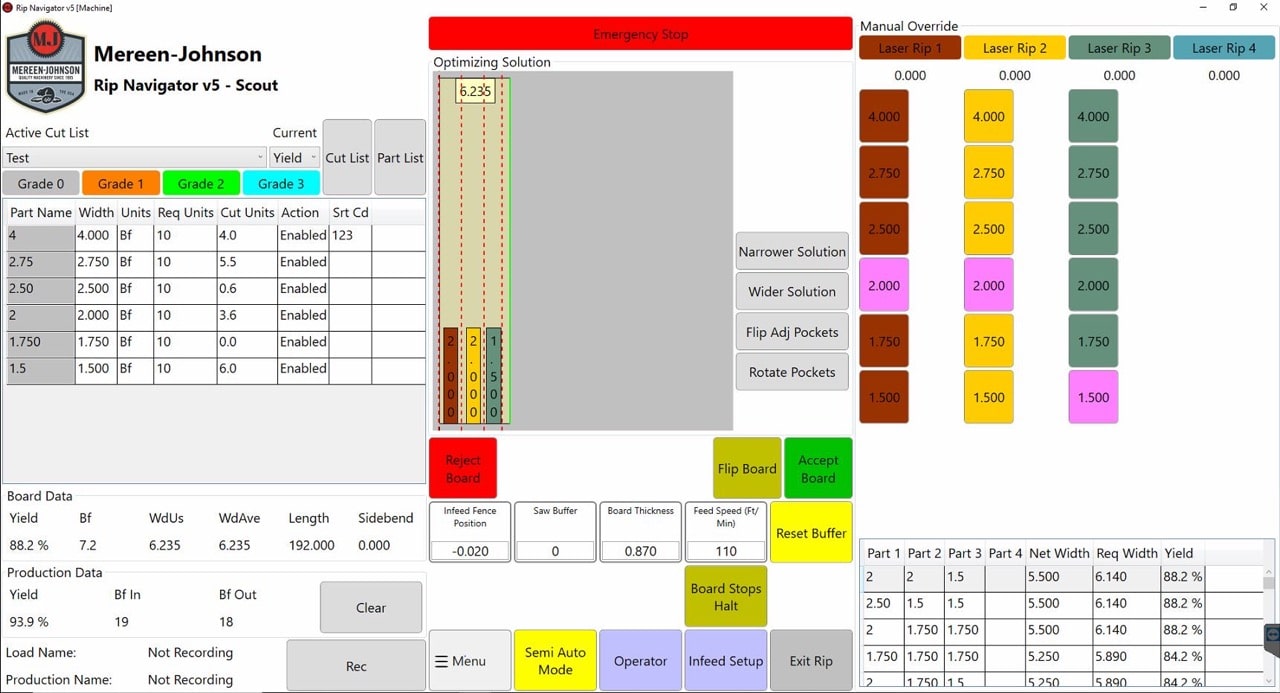

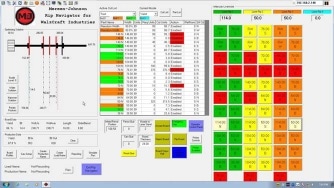

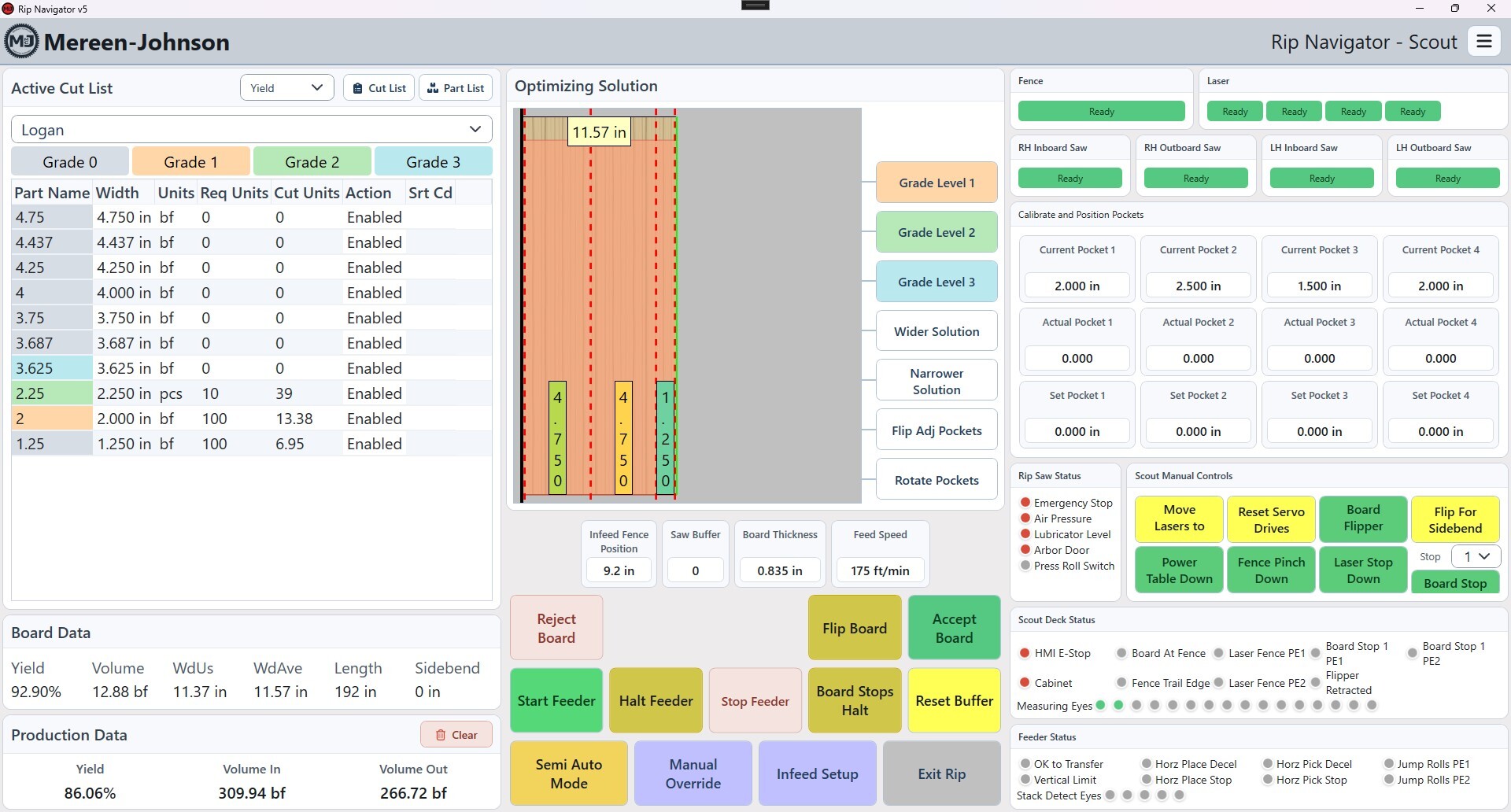

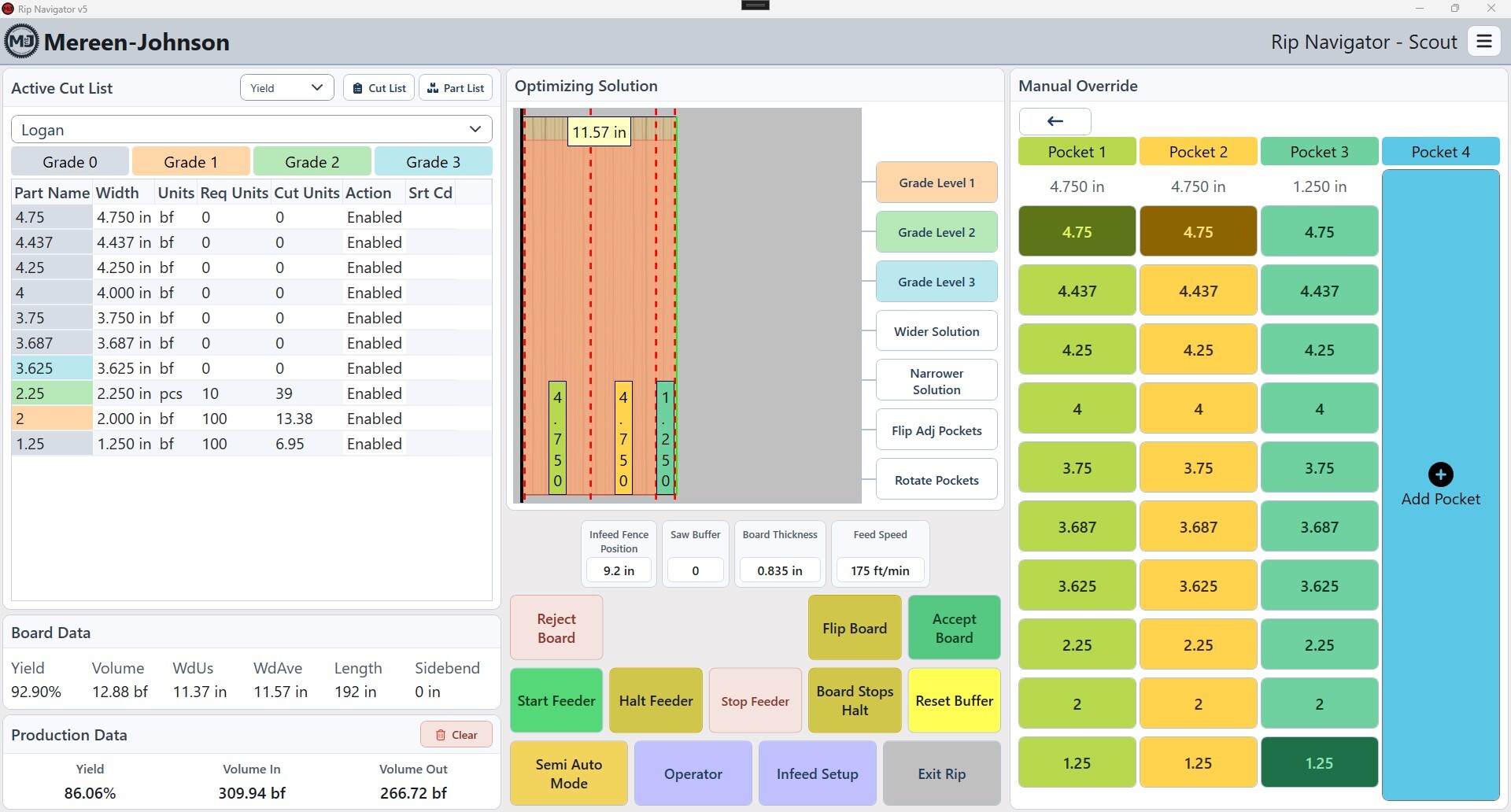

Rip (and edit if needed). The solution drives the system guide (in linear ways) and the paired rip saw; an operator intervention station with servo-controlled lasers lets the operator see and edit the computer-generated solution before the cut.
Track. Real-time recording reports by operator, vendor, species, shift, thickness, grade, or load — and can turn off rips automatically once production targets are met.

That’s what makes the Scout a true automated lumber ripping system: it turns each board into the highest-value set of parts, at up to ten 16-foot boards per minute, with a single operator.

Applications

The Scout fits any operation where lumber yield and the right part mix drive profitability:

Value-based rip optimization — rip each board for the highest-value parts, not just the most square inches.
Maximum yield recovery — recover usable width a fixed setup would lose, board by board.
Rough mill breakdown — high-throughput processing of rough lumber into cut-to-order strips.
Cut-bill & cross-cut control — rip only strips that meet your length and cross-cut requirements.
Grade & species tracking — optimize and report by grade, species, vendor, and load.
Upgrading an existing saw — add full optimization to most Mereen-Johnson fixed-blade or selective rip saws.

As a rip optimizing machine that bolts onto your saw, the Scout brings automated optimization to a line you may already own.

Industries Served

The Scout supports high-production solid-wood operations across:

Rough Mill — cut-first and value-based recovery from rough lumber.
Cabinetry — high-yield style, rail, and face-frame stock.
Furniture — dimension components at the best yield and value.
Flooring — strip recovery from solid hardwood.
Mouldings — random-width blanks for profile lines.
Doors & Windows — component stock for frame and panel production.
Custom Millwork — flexible, value-driven ripping for varied stock.

Emerging applications: mass timber and pre-fabricated / modular home components, where high volume and lumber yield both matter.

Frequently Asked Questions

What is a rip optimization system?

A rip optimization system scans each board and calculates the highest-yield or highest-value way to rip it, then rips to that solution automatically. The Rip Navigator Scout is Mereen-Johnson’s largest rip optimization system.

How does the Scout optimize each board?

It scans the board for width, length, and crook, then Rip Navigator computes the best rip solution against your cut bill — in Yield, Value, or Manual mode — and drives the saw to that solution.

What are the three optimization modes?

Yield mode maximizes fiber recovery, Value mode prioritizes your highest-dollar components, and Manual mode is for when inventory matters more than yield.

How fast is it?

Up to ten 16-foot boards per minute, fed by infeed chains, accumulator arms, and an integrated board dealer that let a single operator run the system.

Can it work with a rip saw I already have?

Yes. The Scout integrates with most Mereen-Johnson fixed-blade and selective rip saws, with random-width part capability on Select Rip saws — so it’s an automated rip system you can add to an existing saw.

Can I add camera scanning for defects?

Yes. An optional NaviVision upgrade adds multiple color cameras for surface-defect detection, on top of the standard width, length, and crook scanning.

What can it track and report?

Production by any combination of operator, vendor, species, shift, material thickness, grade, or individual load — and it can turn off rips automatically once you’ve made enough of a part.

How is the Scout different from the Tracker and the 5300 Trailblazer?

All three run Rip Navigator optimization. The Tracker is the compact, small-shop configuration, and the 5300 Trailblazer is the selective short-stock saw; the Scout is the largest platform, with full board-handling (infeed chains, board dealers, optional flipper) for the highest throughput.

Is it made in the USA?

Yes. The Rip Navigator Scout is designed and built by Mereen-Johnson in the USA and ships fully assembled.
