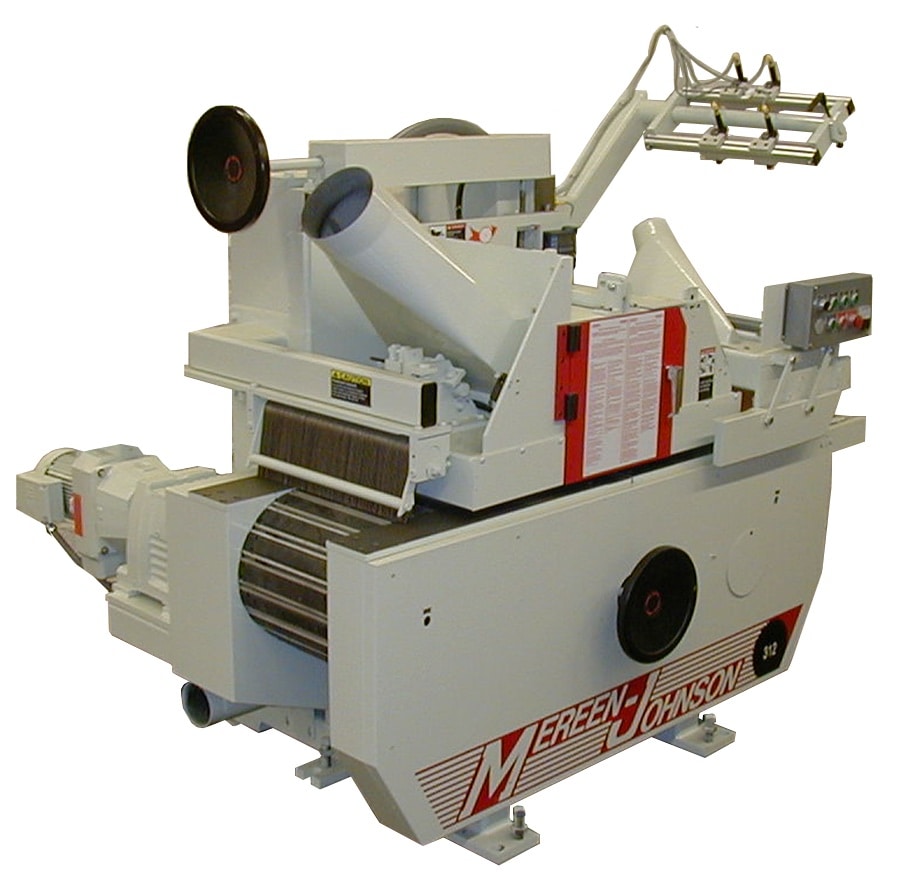

The Mereen-Johnson 300 Series rip saws offer all the quality, heavy-duty construction, and precision glue joint ripping capability you expect. What you would not expect is how affordable this machine is for any shop ripping up to 10,000 board feet per shift or for large operations that need multiple ripping cells for flexibility.
Features
Capacity | 12″ arbor space; thickness to 3-1/2″, 30″ min. length glue joint accuracy. 22“ min. length bust up only. Left side open for ripping wide panels. |
Arbor Drive | 50 HP 3600 RPM TEFC direct arbor drive. |
Feed Drive | Posi-Feed friction feed bed with 5″ pitch Mereen-Johnson Double-Vee chain and extruded structural aluminum feed slats with replaceable steel-backed rubber insert strips. Oil mist lube of chain and track. 30 to 235 FPM through freq. control. |
Hold Downs/Bed Plate | Four 3″ dia. air loaded press rolls. Full width spring loaded bed plate. |
Saw Sleeve | 12″ capacity saw sleeve. Arranged for 10” to 14” dia. x 3-1/2” bore tooling. |
Saw Spacers | One set included. |
Dust Collection | One 8″ and one 5″ dia. upper; one 5″ dia. lower. 3110 CFM total. |
Anti-Kickback Safety Device | Single bottom and double upper infeed. Single upper outfeed. |
Stock Guide | Slide type adjustable guide. |
Electrical | Arranged for 3/60/230 or 460 volt power supply (other electrics available). |
Shipping Wt. | 6,500 Lbs. / 3,000 Kg. (approx.) |
Warranty | 2 years |
Options | Powered Vertical Arbor Adjust TwistLock Saw Collars Sound Enclosure Laser Lights / Stand Power Feed Table |
Optional Add-On

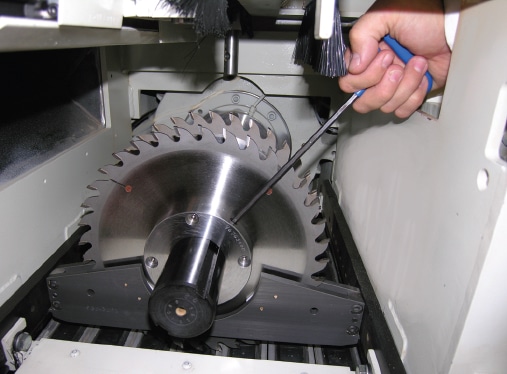

TwistLock saw collars are manually locked into the desired position with the supplied “T” handle wrench providing positive locking power. Great for narrow rip application requirements.
Automation & Robotics
Mereen-Johnson stands at the forefront of delivering cutting-edge automated handling solutions that will streamline your workforce and wood machinery assets. Our smart, automated handling solutions are meticulously crafted to enhance your machine throughput and efficacy while substantially trimming your labor expenses.
Our complete spectrum of services ranges from conceptualization and design of production lines to installation, personnel training and ongoing maintenance, and we cater to a wide array of client requirements, offering both standardized system solutions and fully personalized options to suit your specific needs.
Vertically integrated manufacturing in the USA means we control every step of the process to deliver the performance and longevity that the industry has grown to expect from us.
Listening to your specific needs, we will adapt a standard machine or develop a fully custom solution, including automation and robotics, and manufacture it in-house.
Our state-of-the-art production space has room to build, test and prove large-scale design solutions. Design-build teams work together to make your custom concept a reality.
We will always support your machine. From training programs to replacement parts, schematics to software support, we’ve got you covered, remotely or onsite.
The Model 110 Equalizer can be integrated with most moulders, creating a highly efficient…
Model 435 Series is a versatile line of machinery custom designed and manufactured for nea…

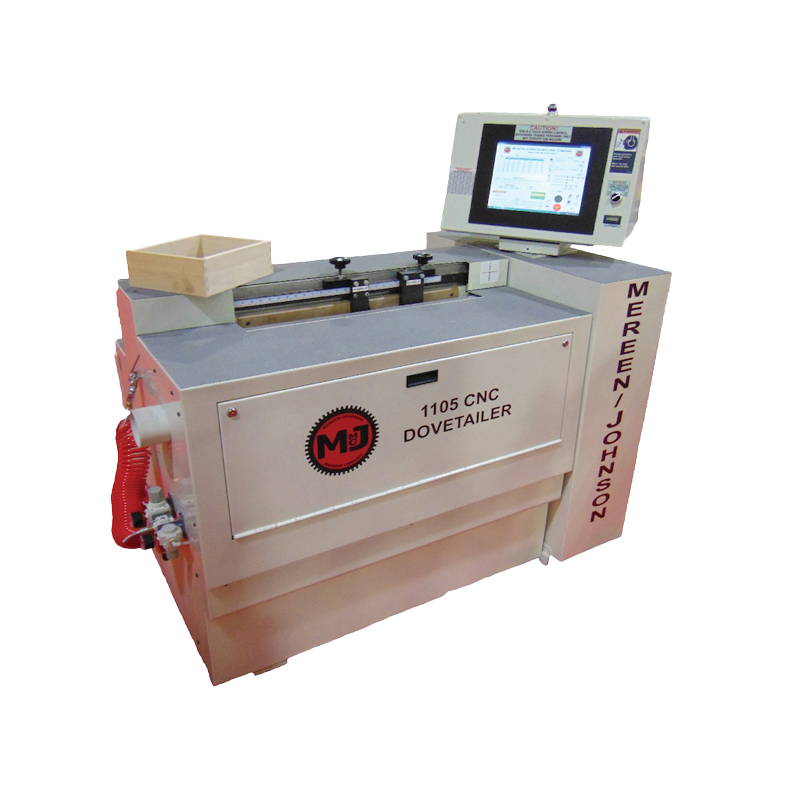

Mereen-Johnson’s CNC Dovetailers offer the quality construction, precision, reliability, a…
