Scout Loader

Specifications

Capacity	4′ wide × 4′ tall × 17′-6″ maximum bunk capacity.
Transfer Carriage	Four vacuum boxes mounted from a heavy steel-frame carriage riding on V-castors and rails.
Even End Roll Case	Combination of 3-1/2″ driven and idle jump rolls arranged to receive each layer of boards and transfer to an end stop.
Lateral Chain Deck	Seven strands of chains integrated with the Rip Navigator Scout drive.
Electrical	Arranged for 3/60/230 or 460 volt power supply (other electrics available).
Shipping	Two skids: nominal 20′ × 7′ × 4′, 8,400 lbs; nominal 10′ × 8′ × 3′, 4,700 lbs.

How the Scout Loader Works

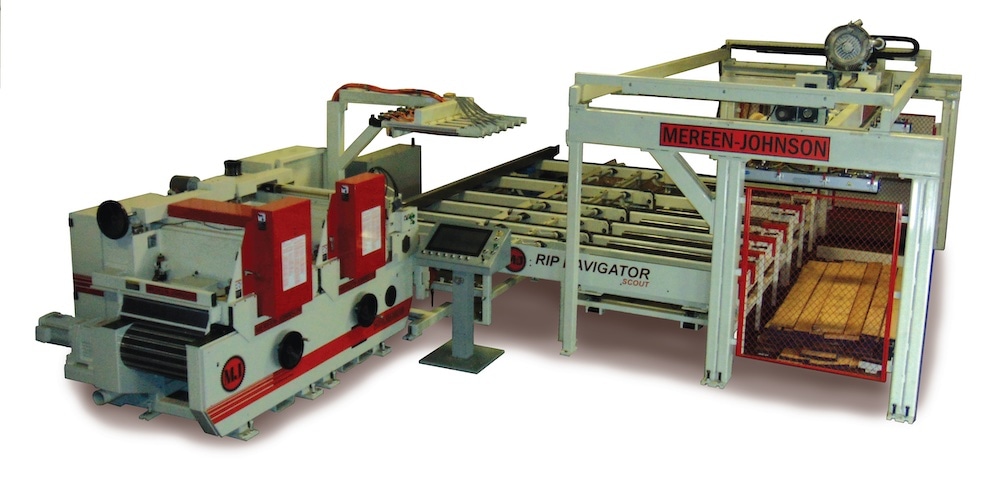

The Scout Loader destacks a deadpacked bunk one layer at a time and feeds the boards into the Rip Navigator Scout — automatically:

1. Vacuum-lift a layer. A transfer carriage with four vacuum boxes, riding on V-castors and rails, lifts an entire layer of boards off the bunk with vacuum assist — without destabilizing the stack.
2. Even the ends. The layer transfers to an even-end roll case (driven and idle jump rolls) that receives the boards and squares them to an end stop.
3. Feed the line. A lateral chain deck — seven strands, integrated with the Rip Navigator Scout drive — feeds the boards into the optimizing rip line, in step with the Scout.
4. Return the balance. When production needs are met, a partially used bunk can be returned to stock.

The result is an automatic board feeder that turns a deadpacked bunk into a steady, hands-free supply of boards for the Scout — replacing manual loading in a compact footprint.

Applications

The Scout Loader automates the lumber-loading step ahead of a Rip Navigator Scout optimizing line:

• Automated lumber infeed — feed a Scout rip line hands-free, layer by layer.
• Deadpacked bunk destacking — offload solid-packed bunks without stickers or a separate unscrambler.
• Labor reduction — remove the manual loading operator and the handling damage that comes with it.
• Compact automation — a smaller footprint than unscramblers or tilt hoists.
• Flexible production — return partially used bunks to stock when a run is done.

As a vacuum lumber loader and automatic board feeder, it keeps the optimizing line supplied without manual handling.

Industries Served

The Scout Loader supports high-production operations running a Rip Navigator Scout line:

• Rough Mill — high-volume rip operations feeding a Scout optimizing line.
• Furniture — dimension-stock production at scale.
• Cabinetry — high-throughput stock ripping.
• Flooring — solid hardwood strip production.
• Mouldings — random-width blank production.

Emerging applications: any operation scaling up rip-line throughput and looking to cut lumber-handling labor and material damage.
