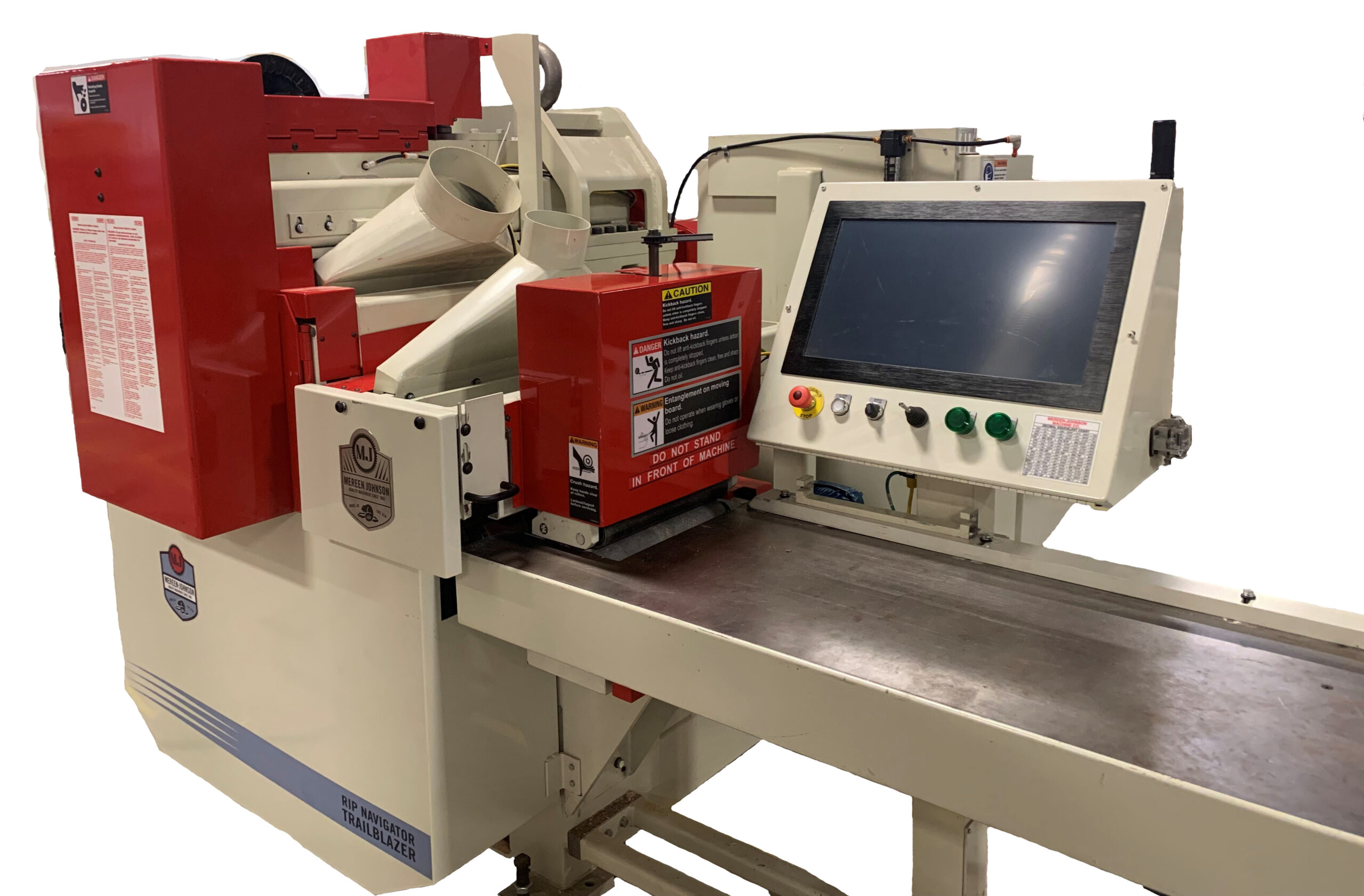

Model 5300 “Select-A-Rip”™ Rip Saw
with Rip Navigator™ Trailblazer

The Model 5300 with Rip Navigator Trailblazer is an affordable, high-performance rip optimizing system built for maximum flexibility in a small footprint. Purpose-built as a short stock rip saw, it brings automatic, board-by-board yield optimization to shops that rip shorter-length material — without the floor space or price tag of a full board-handling optimization line.

At its core, the 5300 is a Select-A-Rip saw: instead of cutting every board at the same fixed blade spacing, up to four shifting saw blades reposition for each individual board. That’s the difference between a conventional gang rip saw and a true rip optimizing system for short stock — you stop leaving usable width in the edgings, and you recover yield on every piece that runs through the machine.

Rip Navigator Trailblazer blends high-tech optimization with hands-on control. Operators gain real-time command over every cut, maximizing yield and quality board after board. And because setup is intuitive and training is simplified, the Trailblazer gets your team up and running fast. It’s the smart choice for shops that demand both versatility and efficiency in a compact rip optimizing system.

request quote

Key Features & Benefits

• Selective (shifting) blade ripping — Up to four moving saw blades, with an optional center fixed blade, reposition for each board to eliminate fixed-width edgings and recover usable lumber that conventional gang rip saws leave behind.
• Automatic, real-time optimization — The Rip Navigator scans each incoming board and sets the blades before the board reaches the arbor. No operator measuring, no manual repositioning, no lost line speed.
• Three optimization modes — Yield Mode to maximize fiber recovery, Value Mode to prioritize the highest-dollar components on your cut list, and Manual Mode for when inventory needs outweigh yield recovery.
• Compact footprint — Big-shop ripping performance built for a small-shop floor plan and budget. Ideal where space is tight but yield still matters.
• Optimized for short stock — Engineered for cut-first, recovery, and short-length ripping operations that full-size optimization platforms aren’t built to run efficiently.
• Remote Cut List entry — Update target widths from a phone or tablet without stopping the line, so production keeps moving through dimension changes.
• Fast changeovers — The exclusive TwistLock™ blade setting system means quick, tool-light changeovers and less downtime between runs.
• Detailed production reporting — Track yield, part production, board quality, and vendor performance in real time, at the machine or remotely.
• Lower cost of ownership — Heavy-duty, American-built construction is engineered for reliability and minimal downtime over a long service life.

How the Rip Navigator Trailblazer Optimizes Every Board

The 5300 turns ripping from a fixed operation into a board-by-board decision:

1. Scan. As each board enters the infeed, the Rip Navigator measures its geometry in real time — width, taper, and edge profile.
2. Optimize. The optimization software instantly calculates the rip pattern that yields the most usable material from that specific board against your active cut list.
3. Position. The solution is sent to the Select-A-Rip blade system, which shifts the blades into position automatically before the board reaches the saw arbor.
4. Cut. The board is ripped to the optimized pattern at full line speed — no operator intervention required.

The result: a fixed-arbor rip saw cuts every board the same way regardless of its actual width, producing narrow off-cuts (edgings) that represent lost yield. The 5300 adapts to each board, so more of every board becomes a usable, salable part. For an optional accuracy upgrade, NaviVision adds multiple color cameras to detect fine defects, crook, and wane before the cut.

Applications

The Model 5300 Select-A-Rip is built for high-yield ripping of short and dimension stock, including:

• Dimension stock — Precision components, S4S blanks, and cut-to-width parts.
• Salvage and reclaim — Recovering maximum usable width from short offcuts, cut-first material, and defected stock.
• Moulding stock — Random-width blanks feeding downstream moulders and profilers.
• Edge-glued panel stock — Ripping solid-wood strips for panel glue-up.
• Face frame, stile, and rail stock — High-value hardwood components where every recovered inch of width improves material cost.

Because it’s a shifting-blade rip optimizing system for short stock, the 5300 excels in operations where board widths vary and yield recovery drives profitability.

Industries Served

The 5300 supports high-production facilities across the wood products industry:

• Cabinetry — Face frame, stile, and rail ripping where hardwood stock is a major cost driver.
• Furniture — Dimension component recovery from varied-width stock.
• Custom Millwork — Flexible, made-to-order ripping for short runs and changing cut lists.
• Doors & Windows — Precision component stock for frame and panel production.
• Flooring — High-yield strip recovery from solid hardwood.
• Mouldings — Random-width blank production feeding profile lines.
• Rough Mill — Cut-first and recovery operations where yield optimization delivers fast ROI.

Emerging applications: As wood increasingly replaces steel and concrete in construction, Mereen-Johnson optimization systems are finding new roles in mass timber processing and pre-fabricated / modular home component production — high-volume, yield-sensitive operations where the 5300’s board-by-board optimization pays off.

Why Mereen-Johnson

For more than 120 years, Mereen-Johnson has built high-performance woodworking machinery in the United States. The 5300 reflects that heritage:

• American-built durability — Engineered for reliability and minimal downtime, with a lower total cost of ownership over the life of the machine.
• Backed for the long haul — Industry-leading warranty and after-sales service, from operator training and replacement parts to schematics and software support — remote or on-site.
• Custom-engineered when you need it — Every standard machine is customizable, and our in-house design-build team can adapt the 5300 or engineer a complete solution around your line, throughput targets, and material mix.
• Lead-time advantage — The sooner you’re in our production schedule, the sooner your machine ships. Talk to us early.

Frequently Asked Questions

What is a Select-A-Rip saw?

A Select-A-Rip saw is a rip saw with shifting saw blades that reposition for each individual board, rather than cutting at a single fixed blade spacing. On the Model 5300, up to four blades shift automatically to match each board’s optimized rip pattern — recovering usable width that a fixed-arbor gang rip saw would lose as edgings.

How is the 5300 different from a fixed-arbor gang rip saw?

A fixed-arbor saw cuts every board at the same spacing regardless of its actual width, which produces narrow off-cuts (edgings) on boards that don’t match that spacing. The 5300 scans each board and shifts its blades to the highest-yield pattern for that board, so more of every board becomes usable, salable material.

Is the 5300 a good short stock rip saw?

Yes. The Model 5300 is purpose-built as a short stock rip saw for cut-first, recovery, and short-length ripping operations. It brings automatic yield optimization to shorter material in a compact footprint, without the board-handling infrastructure of a full-size optimization line.

What’s the difference between the 5300 Trailblazer and the Rip Navigator Scout?

The Trailblazer is integrated directly with the 5300 saw as a compact, high-throughput selective-rip package — ideal for short stock. The Scout is a larger, complete optimization platform with infeed chains, board dealers, and optional board flipping, designed for operations that need the full board-handling architecture around longer stock. If footprint, budget, and short-stock ripping are your priorities, the 5300 Trailblazer is the right fit.

How does the Rip Navigator maximize lumber yield?

It scans each board’s width, taper, and edge profile in real time, calculates the rip pattern that recovers the most usable material against your active cut list, and sets the blades automatically before the board reaches the arbor — all at production line speed.

Can operators change the cut list without stopping the line?

Yes. The service-based Remote Cut List feature lets operators update target widths from a phone or tablet, so production keeps running through dimension changes.

How many saw blades does the 5300 have?

The Select-A-Rip configuration uses up to four shifting saw blades, with an optional center fixed blade.

What optimization modes are available?

Three: Yield Mode to maximize fiber recovery, Value Mode to prioritize the highest-dollar components, and Manual Mode for when inventory needs outweigh yield recovery.

Is the Model 5300 made in the USA?

Yes. Mereen-Johnson designs and builds its machinery in the United States, at its facility in Minneapolis, Minnesota, and backs every machine with U.S.-based parts and service.

What industries use the 5300?

Cabinet, furniture, millwork, door, window, flooring, and moulding manufacturers — plus emerging mass timber and pre-fab home component operations — anywhere short-stock ripping yield drives profitability.
